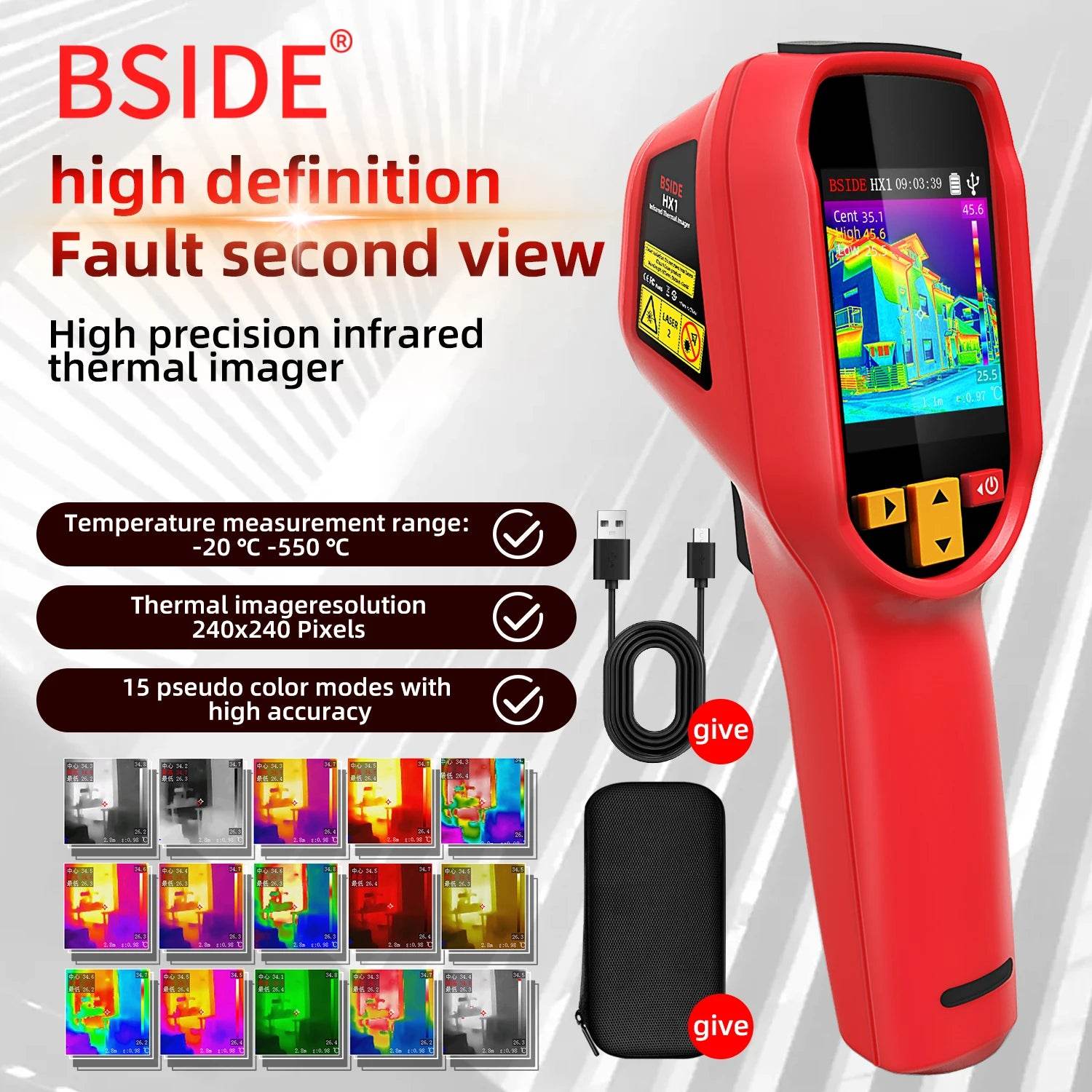

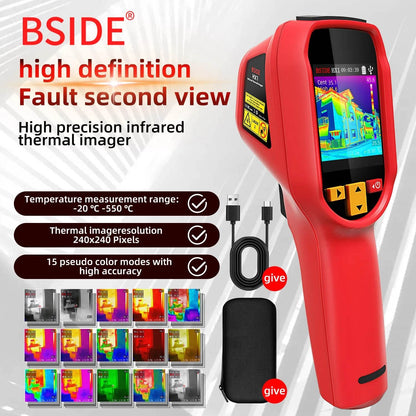

HX1 Thermal Imager Camera 240×240 Resolution -20~550C

Introducing the HX1 Thermal Imager Camera, a state-of-the-art handheld device designed for professionals who require precision and reliability in thermal imaging. With a resolution of 240×240 pixels and a temperature range of -20 to 550°C, this thermal imager is perfect for a variety of applications, from electrical inspections to building diagnostics.

High Resolution: 240×240 infrared resolution ensures clear and precise imaging.

Versatile Temperature Range: Measures temperatures from -20°C to 550°C with high accuracy.

Multiple Color Palettes: Choose from 15 color modes for easier interpretation of thermal data.

Durable Design: IP54 rated with a three-proof design and a robust build to withstand industrial use.

Convenient Data Management: Includes 4GB built-in storage for up to 30,000 images, plus PC analysis software.

The HX1 Thermal Imager Camera stands out from competitors with its exceptional accuracy and user-friendly features. Its adjustable emissivity and high/low temperature alarms make it an invaluable tool for professionals, allowing for precise readings in a variety of environments.

This thermal imager is ideal for HVAC technicians, electricians, and home inspectors. Whether you're diagnosing issues in a residential setting or conducting industrial inspections, the HX1 Thermal Imager Camera delivers the performance you need. Don’t miss out on the chance to elevate your analysis – order yours today!

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Hign-concerned Chemical: None

Origin: Mainland China

BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.

With IR resolution 240×240，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

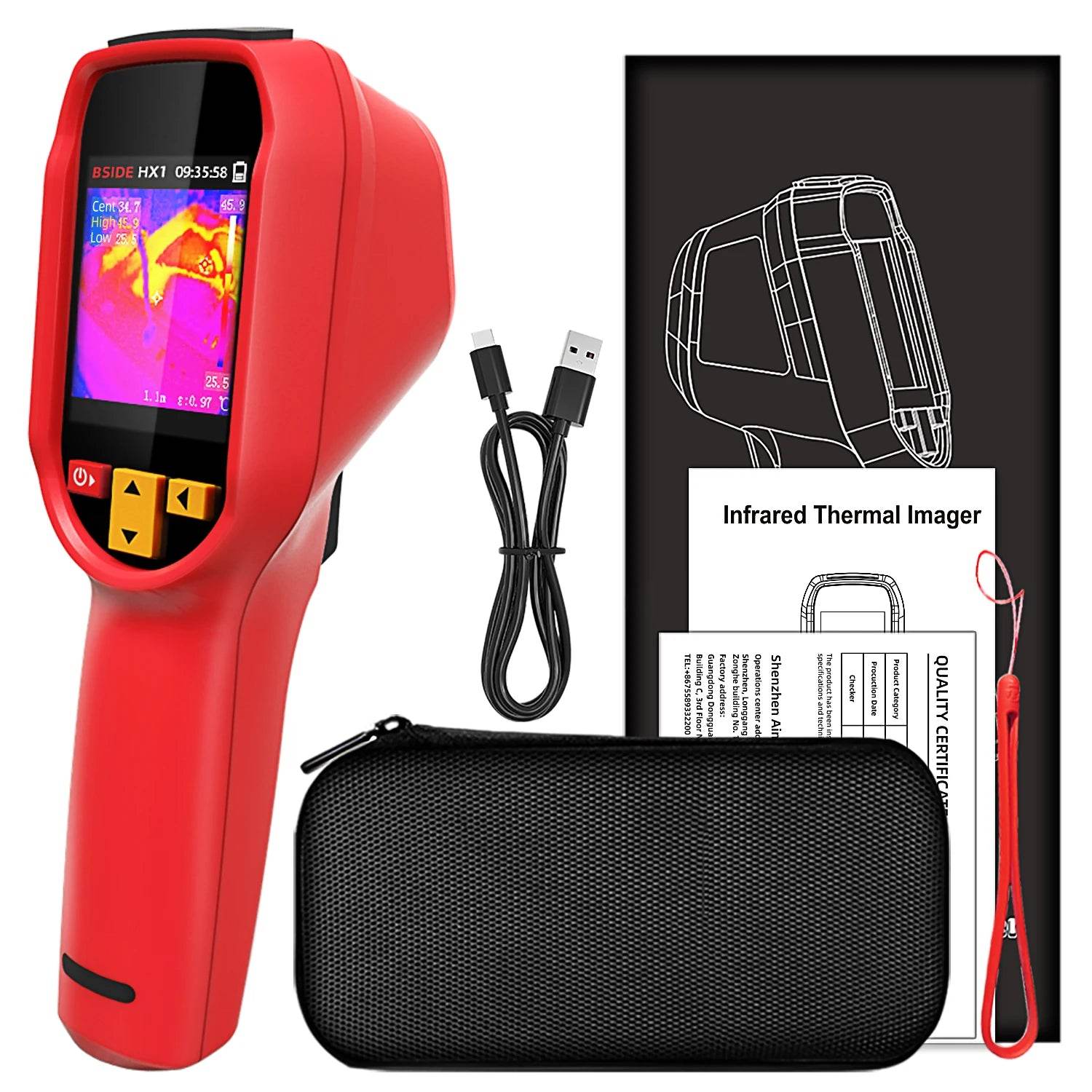

Also comes with a high-quality EVA handbag.

Main features of HX1

IR resolution: 240 × 240

Screen: 2.4 inch LCD screen

Frame rate: 25Hz

15 pseudo color modes with

Temperature measurement range: -20 °C~550 °C

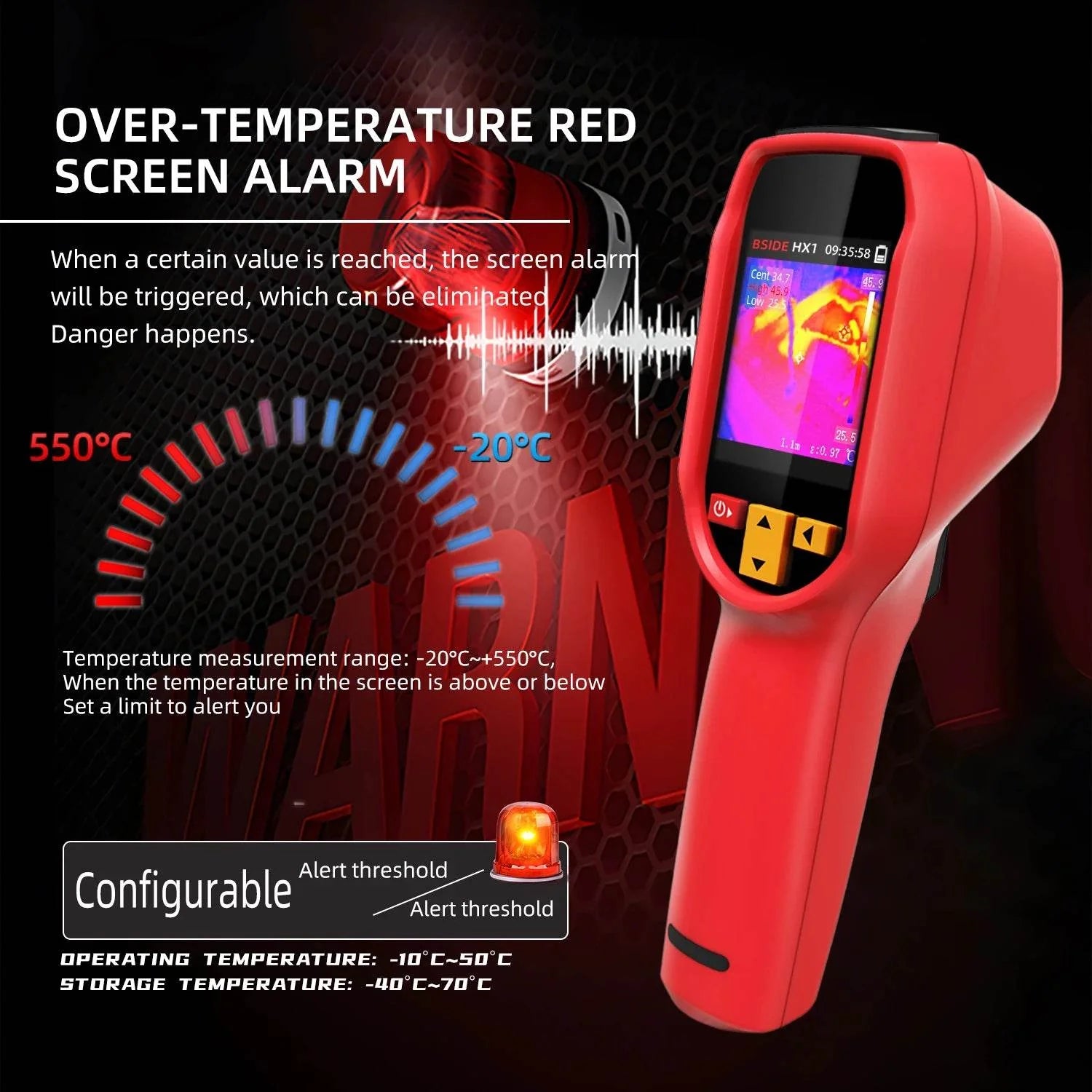

High and low temperature alarms: image, buzz, LED flashing

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

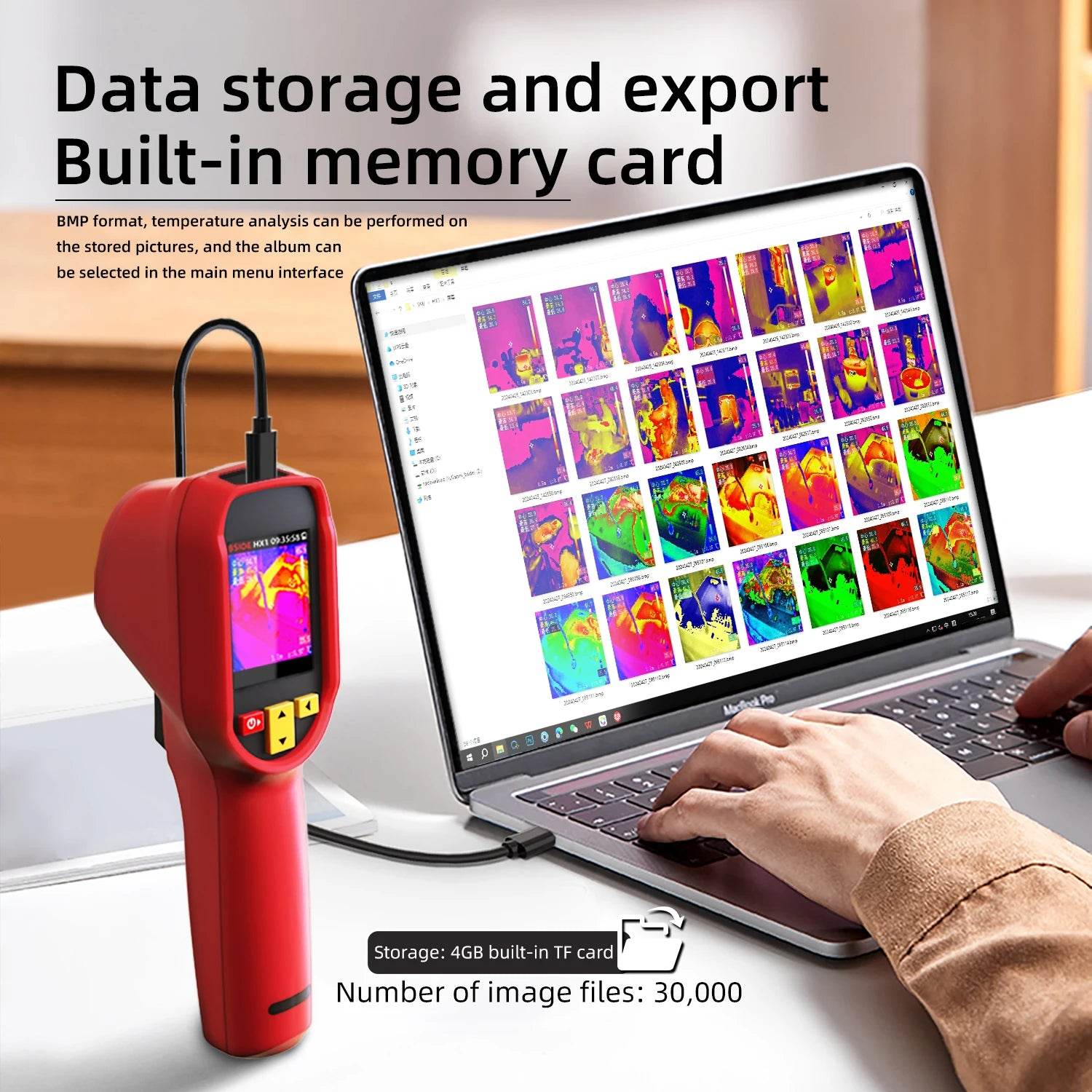

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese;

Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link:

https://www.mediafire.com/file/vrcwjz3t738qelc/HX1-Update.rar/file

Performance Indicators

Sensor type

Vanadium oxide (VOx) microcalorimeter

Response Band

8~14pm

Thermal image resolution

240x240 Pixels

Noise equivalent temperature difference(NETD)

≤60 mK(@25°C,F#1.0)

Angle of view(FOV)

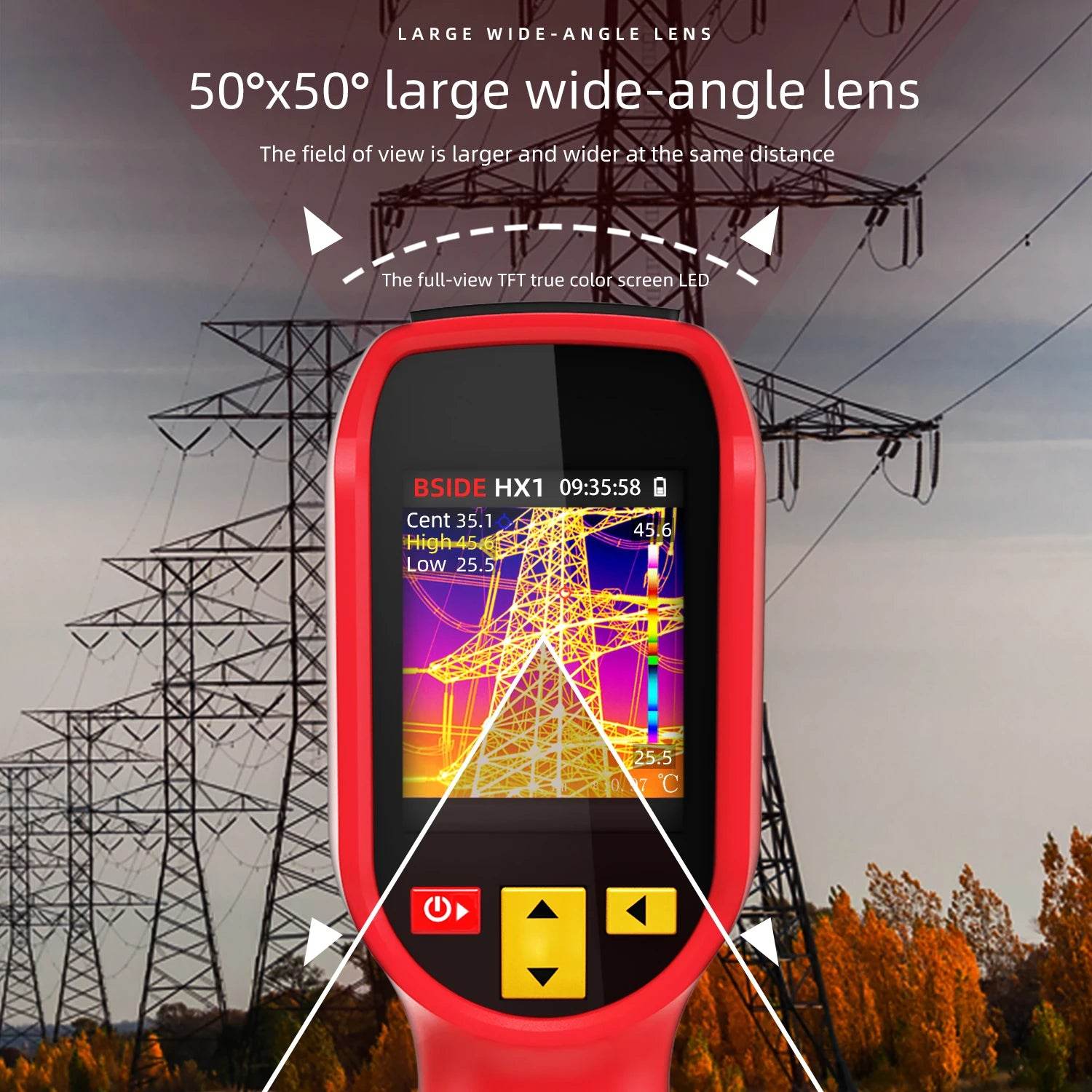

50.0°(H)×50°(V)/72.1°(D)

Spatial resolution (IFOV)

8.89 mrad

Frame rate

25Hz

The focal length of the imaging lens

1.35 mm

Temperature measuring focal length

0.3m~3m Adjustable

Temperature range

-20℃~550℃

Accuracy of temperature measurement

±2℃ or±2%of the reading (take the larger value of the reading)

Unit of temperature measurement

Celsius,Fahrenheit,Kelvin

Temperature resolution

0.1℃

Emissivity

0.01~1.00 Adjustable

Temperature measurement shows

Center point temperature measurement, high and low temperature tracking

Swatches

White Hot,Black hot,Fusion 1,Rainbow, Fusion 2,Iron Red 1,Iron Red 2,

Bark brownColor 1,Color 2,

lce fire,Rain,Green hot, Red Hot,Dark blue

Display screen

2.4 inches TFT LCD

Display resolution

320×240

Key

Power Key,up key,Down Key, Return key,Trigger key

LaserPointer

Yes

Temperature Alarm

Screen font color alarm

Image storage

Built-in memory card

Number of image files

30000

Image format

BMP

Shock/vibration

GB/T 2423.5-2019;GB/T2423.10-2008

Electromagnetic compatibility(EMC)

GB/T17799.2,GB17799.3-2012

Protection level

IP54

Installation mode

Tripod mount UNC-20

Focus mode

Auto focusing

Hardware interface

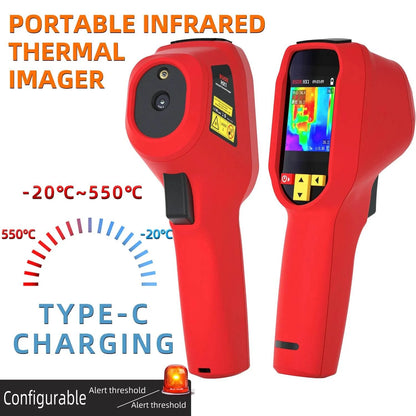

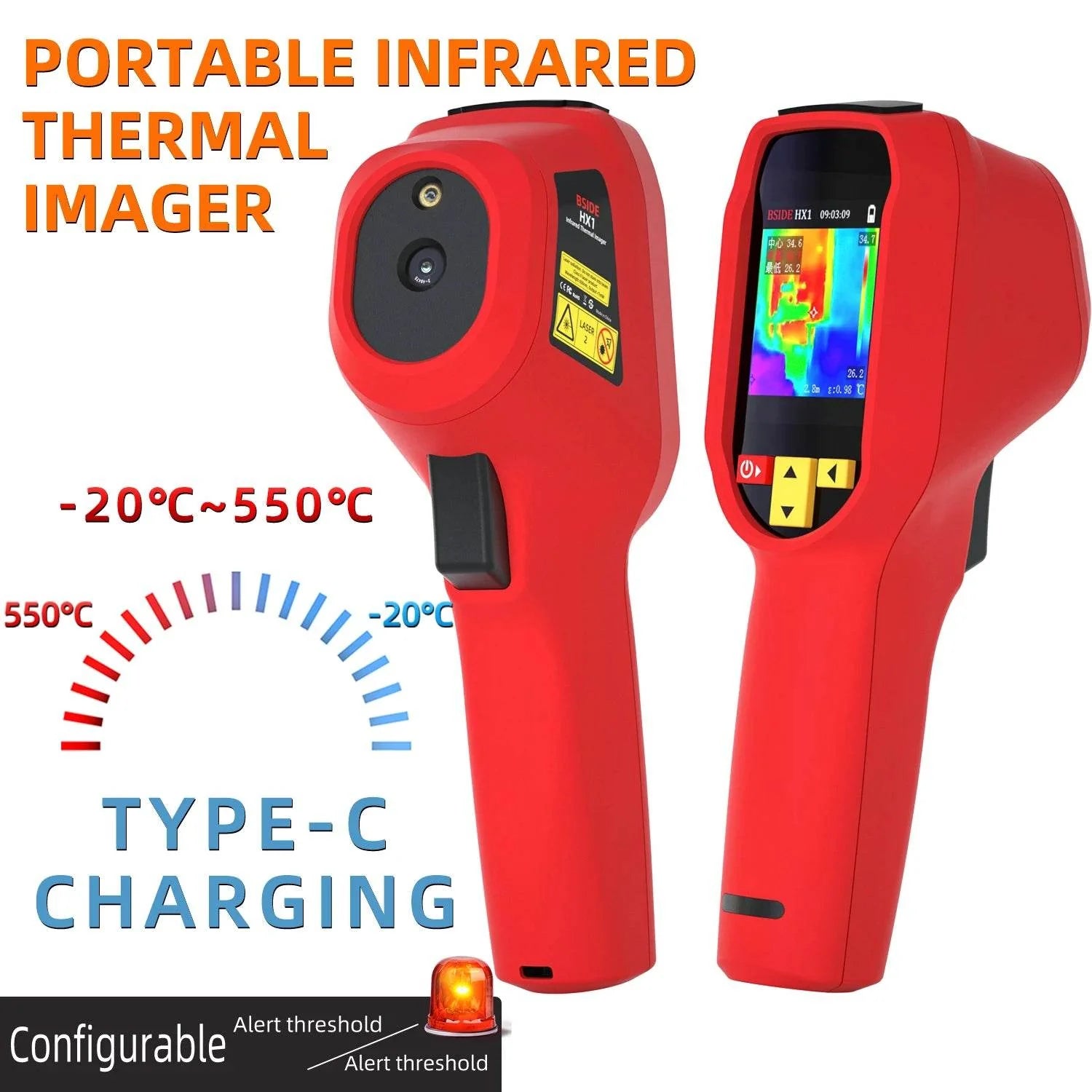

Type-C USB

Battery type

Rechargeable lithium battery (3.7V/2500mAh)

The working hours of the battery

>7h@25℃

Charging time

<3h@25°℃

Charging voltage/current

5V/2A

Boot speed

~8 seconds

Automatic shutdown

Diable(default) (optional 10 Min,20 Min,30 Min, 40 Min,50 Min,60 Min,Disable)

Operating temperature

-10°C~50°C

Storage temperature

-40°C~70°℃

Working humidity

≤85%RH(Non-condensing)

Drop

1.5m

Product dimensions

193.4*59.4*77.4mm

Product weight

277g
