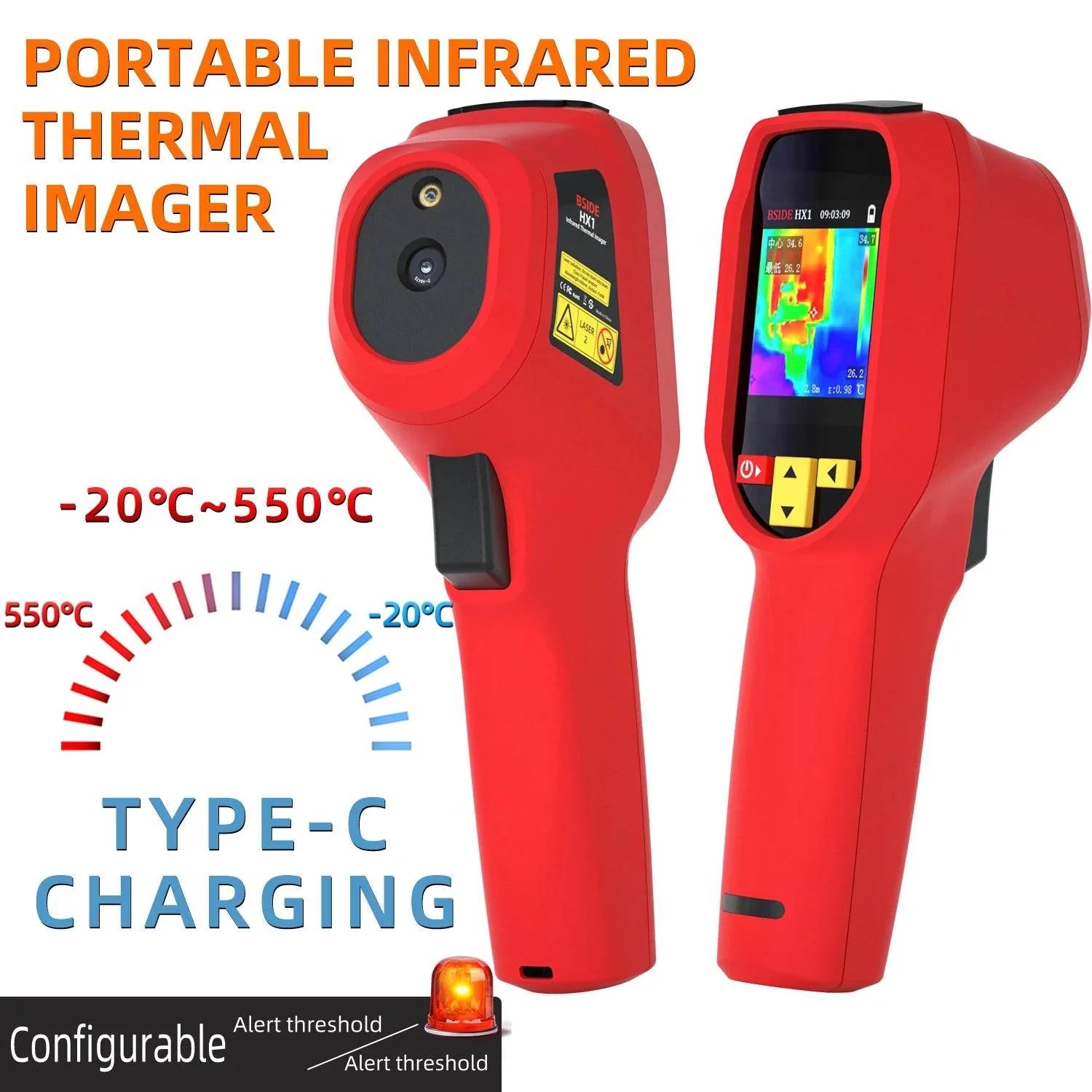

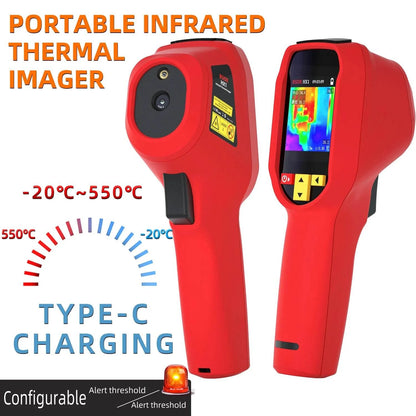

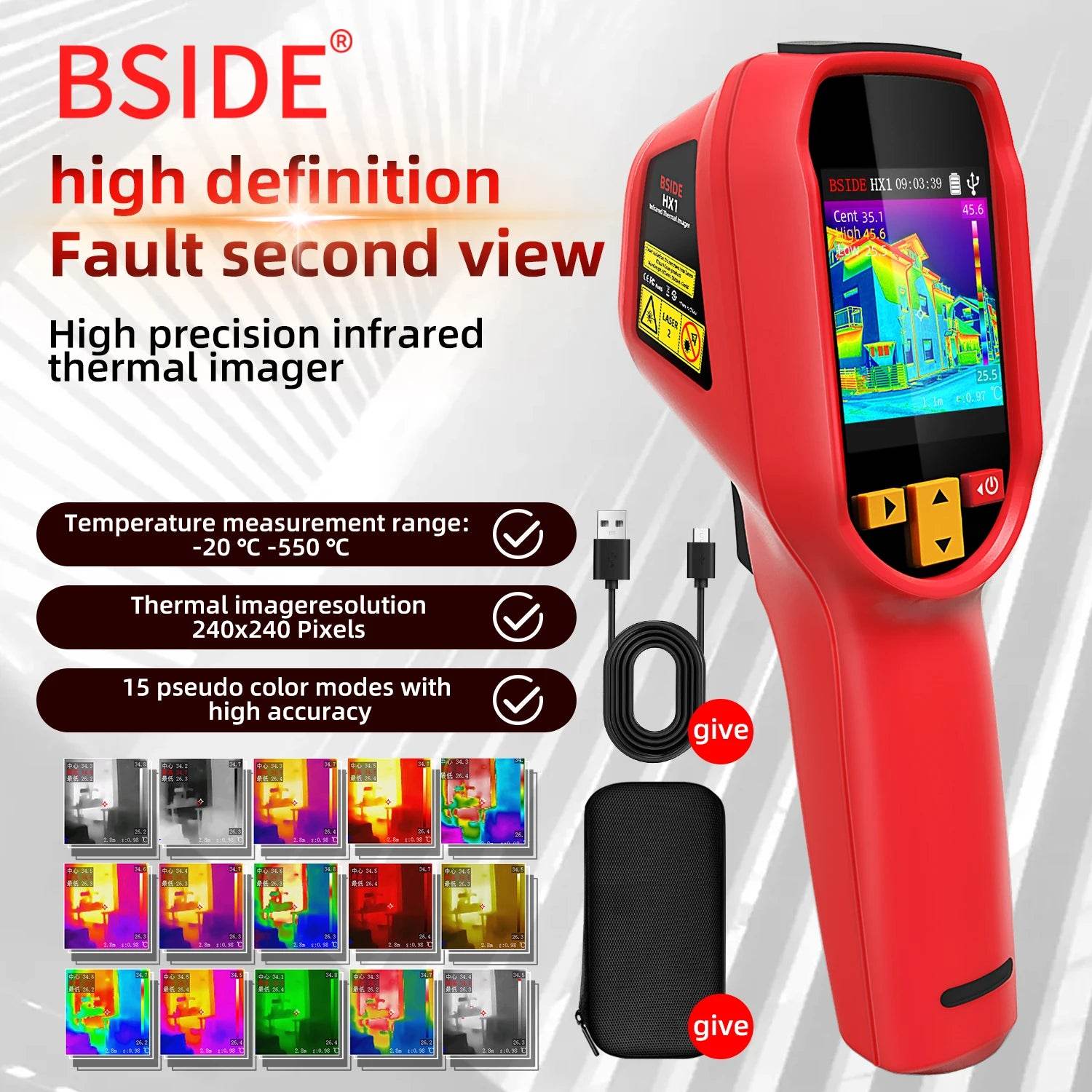

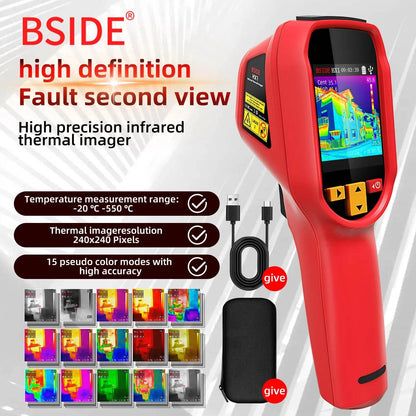

HX1 Thermal Imager Camera Handheld 240x240 Resolution

The HX1 Thermal Imager Camera is a cutting-edge handheld device designed for precise temperature measurement and thermal imaging. With its impressive 240×240 resolution and wide temperature range of -20 to 550°C, this professional tool is essential for industrial testing, maintenance, and safety inspections.

High-Resolution Imaging: 240×240 IR resolution for clear and detailed thermal images.

Versatile Temperature Range: Measures temperatures from -20°C to 550°C, suitable for various applications.

15 Color Palettes: Choose from 15 pseudo color modes to visualize thermal data effectively.

Durable Design: IP54 rated, anti-drop protection, and a high-quality EVA handbag included.

Data Management: Store and analyze images with the built-in 4GB memory card and PC analysis software.

This thermal imager stands out from competitors with its adjustable emissivity, high accuracy, and easy-to-use interface. The temperature alarms feature ensures that you never miss critical readings, making it perfect for professionals who demand reliability.

The HX1 is ideal for electricians, HVAC technicians, and building inspectors. Whether conducting routine maintenance or troubleshooting equipment failures, this thermal imager provides the insights needed to make informed decisions. Experience the blend of innovation and functionality with the HX1 Thermal Imager Camera!

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Hign-concerned Chemical: None

Origin: Mainland China

BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.

With IR resolution 240×240，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

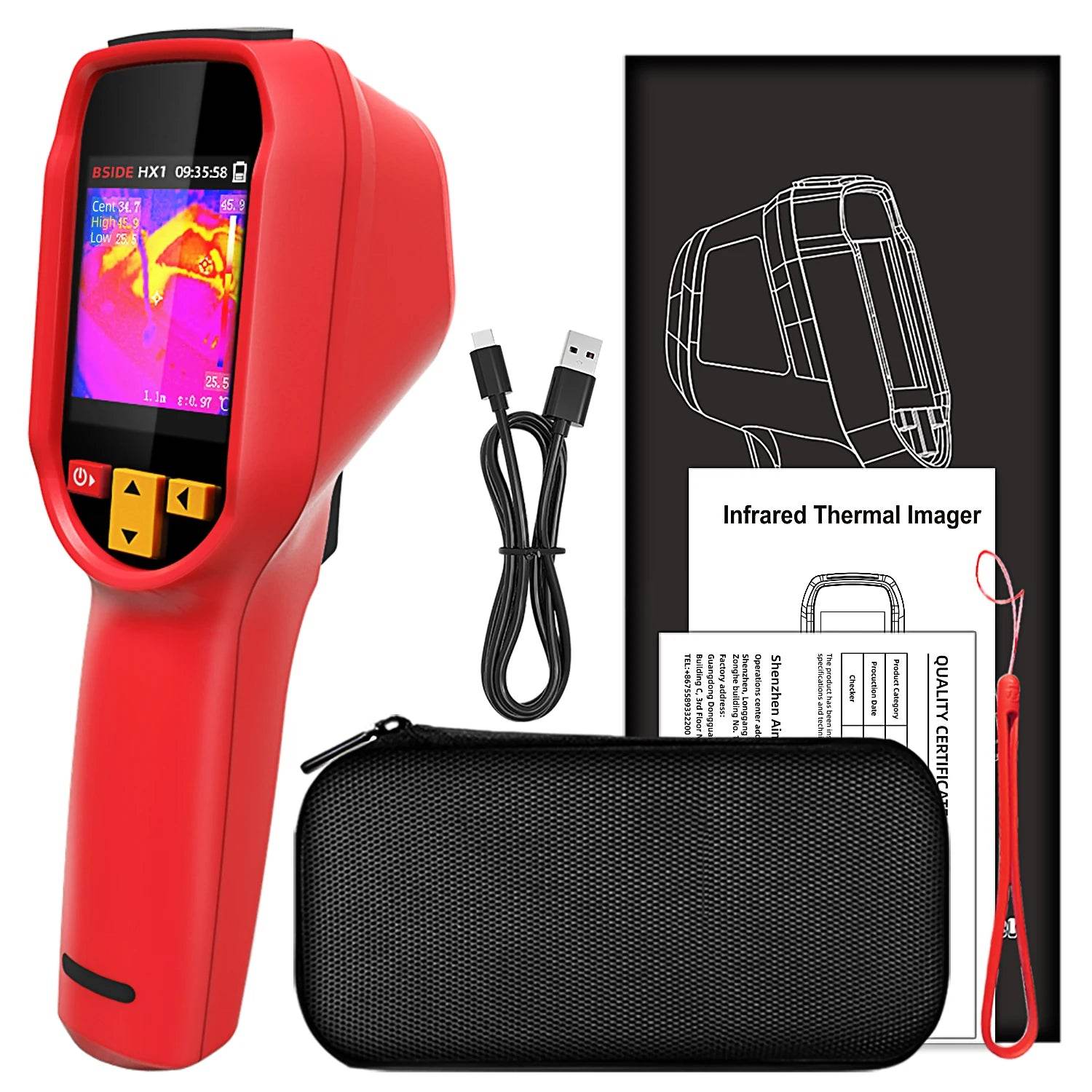

Also comes with a high-quality EVA handbag.

Main features of HX1

IR resolution: 240 × 240

Screen: 2.4 inch LCD screen

Frame rate: 25Hz

15 pseudo color modes with

Temperature measurement range: -20 °C~550 °C

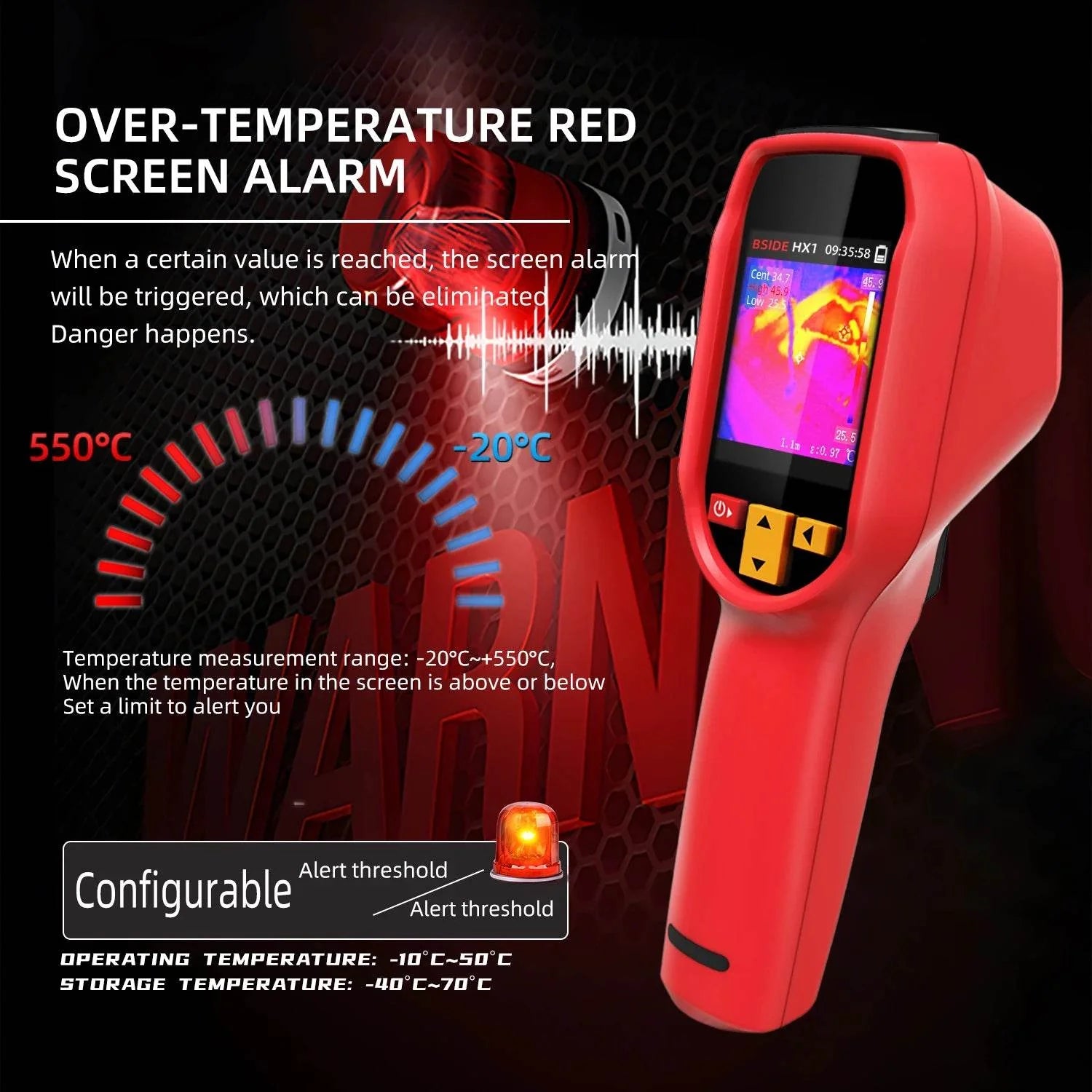

High and low temperature alarms: image, buzz, LED flashing

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

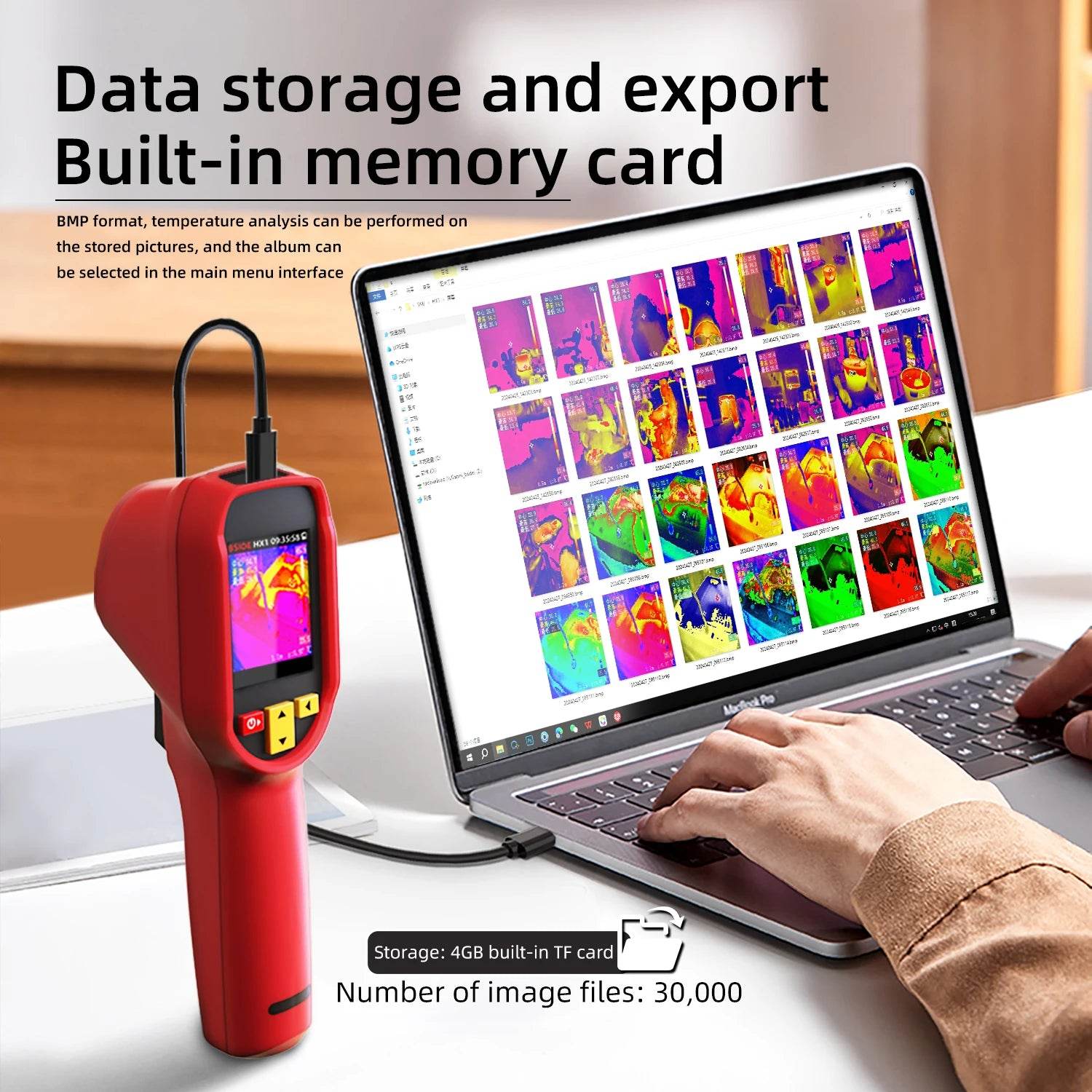

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese;

Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link:

https://www.mediafire.com/file/vrcwjz3t738qelc/HX1-Update.rar/file

Performance Indicators

Sensor type

Vanadium oxide (VOx) microcalorimeter

Response Band

8~14pm

Thermal image resolution

240x240 Pixels

Noise equivalent temperature difference(NETD)

≤60 mK(@25°C,F#1.0)

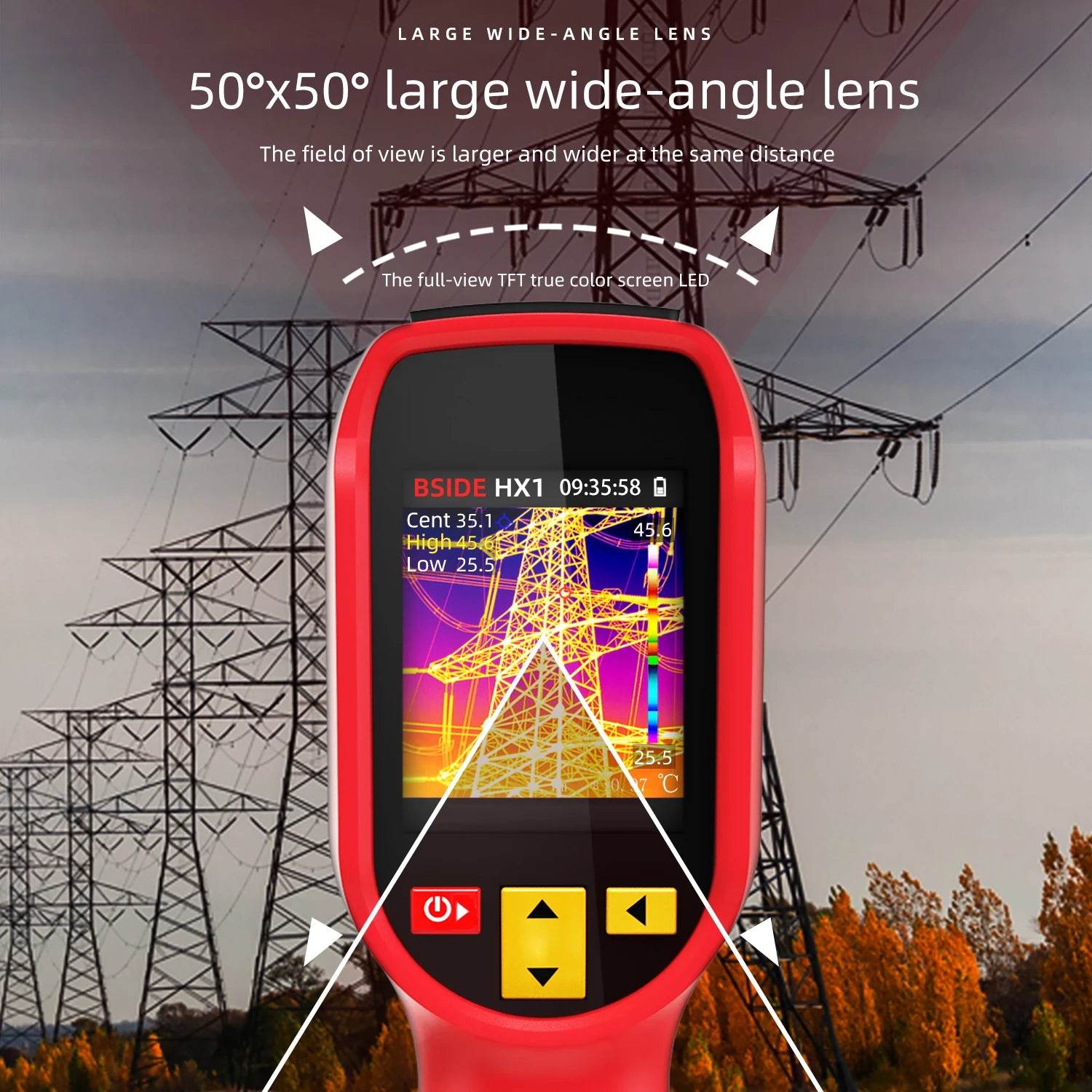

Angle of view(FOV)

50.0°(H)×50°(V)/72.1°(D)

Spatial resolution (IFOV)

8.89 mrad

Frame rate

25Hz

The focal length of the imaging lens

1.35 mm

Temperature measuring focal length

0.3m~3m Adjustable

Temperature range

-20℃~550℃

Accuracy of temperature measurement

±2℃ or±2%of the reading (take the larger value of the reading)

Unit of temperature measurement

Celsius,Fahrenheit,Kelvin

Temperature resolution

0.1℃

Emissivity

0.01~1.00 Adjustable

Temperature measurement shows

Center point temperature measurement, high and low temperature tracking

Swatches

White Hot,Black hot,Fusion 1,Rainbow, Fusion 2,Iron Red 1,Iron Red 2,

Bark brownColor 1,Color 2,

lce fire,Rain,Green hot, Red Hot,Dark blue

Display screen

2.4 inches TFT LCD

Display resolution

320×240

Key

Power Key,up key,Down Key, Return key,Trigger key

LaserPointer

Yes

Temperature Alarm

Screen font color alarm

Image storage

Built-in memory card

Number of image files

30000

Image format

BMP

Shock/vibration

GB/T 2423.5-2019;GB/T2423.10-2008

Electromagnetic compatibility(EMC)

GB/T17799.2,GB17799.3-2012

Protection level

IP54

Installation mode

Tripod mount UNC-20

Focus mode

Auto focusing

Hardware interface

Type-C USB

Battery type

Rechargeable lithium battery (3.7V/2500mAh)

The working hours of the battery

>7h@25℃

Charging time

<3h@25°℃

Charging voltage/current

5V/2A

Boot speed

~8 seconds

Automatic shutdown

Diable(default) (optional 10 Min,20 Min,30 Min, 40 Min,50 Min,60 Min,Disable)

Operating temperature

-10°C~50°C

Storage temperature

-40°C~70°℃

Working humidity

≤85%RH(Non-condensing)

Drop

1.5m

Product dimensions

193.4*59.4*77.4mm

Product weight

277g
